CEG1K0100G

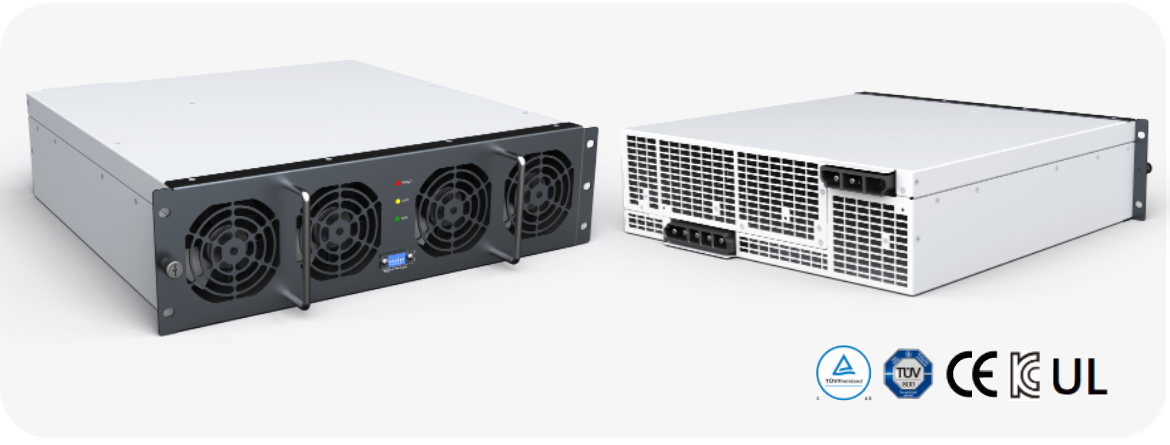

30kW1000V DC2DC Charger Power Module
Parameters
|
Input Voltage range |
300Vdc~825Vdc, 50A |
|
Output Power |
30kW@ voltage >300Vdc |
|
Output Voltage and Current |
150Vdc~1000Vdc, 100A |
|
Dimensions |
110mm(H)×385mm(W)×395mm(D) |

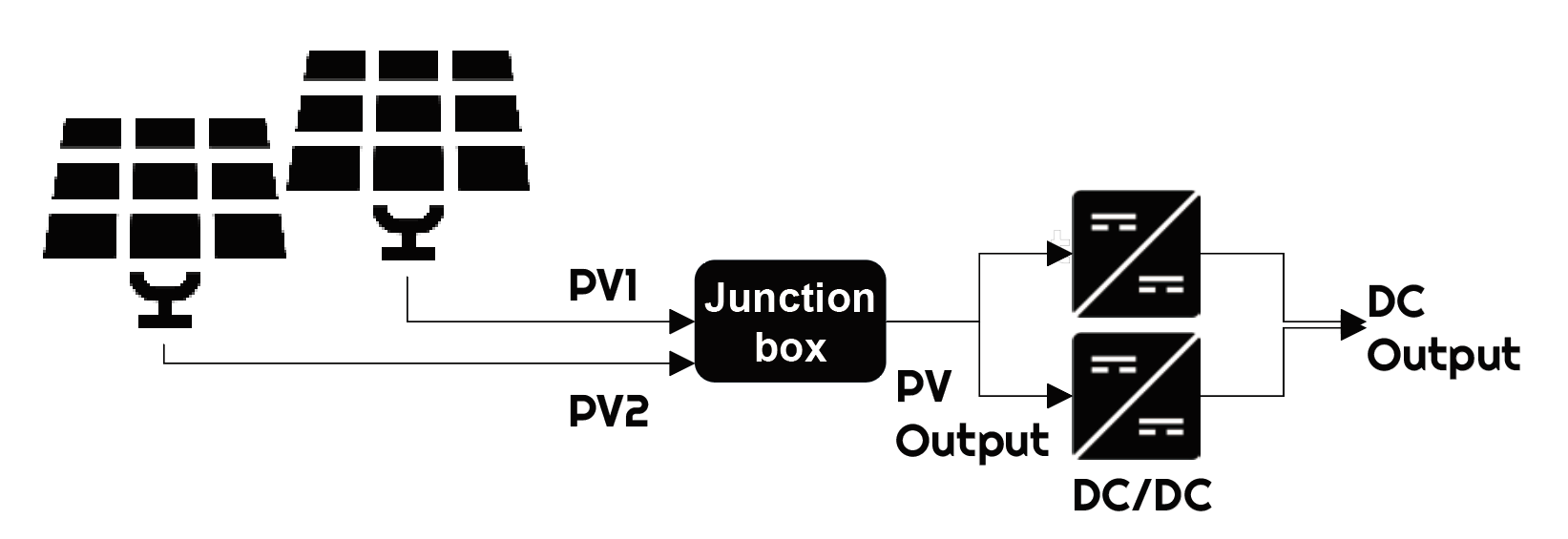

CEG1K0100G support MPPT function to introduce solar panel DC input and the module is perfectly compatible with ACDC Rectifier Module in the size, interface and protocol.
Features
Full hot plug design
A Maximum of 32 modules work simultaneously Inside high frequency isolation transformer
Cover a wide range of voltage input and suits for multiple battery racks
Offer smooth and flexible energy flow among Grid, battery, vehicle, and other loads.
DC2DC Power Module
