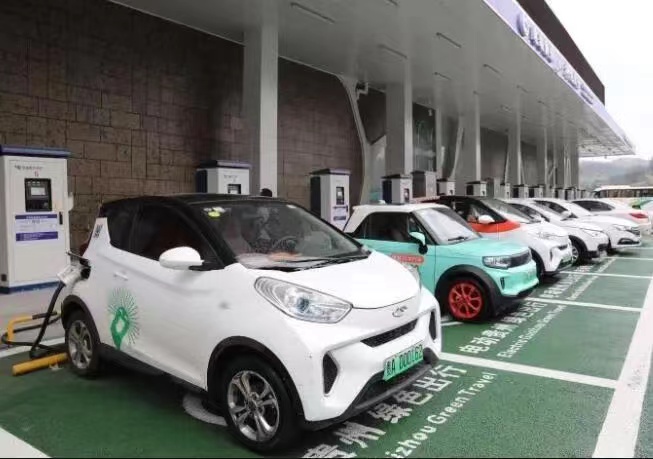

New energy vehicle charging pile popular science!

Know the charging interface
There are two kinds of charging ports on the body: fast charging port and slow charging port. The way to distinguish is as follows: the one with two particularly large holes is the fast charging port, and the one with basically the same size is the slow charging port.
There are also two types of charging guns. In addition to the corresponding jacks, the size and weight are also different. Please distinguish them and insert them into the corresponding ports. The fast charging gun is heavier and the cable is thick; the slow charging gun is lighter and the cable is thinner.


Basic steps for charging
1. The vehicle is in P gear or stopped and turned off: some models cannot start charging when the car is not turned off!

2. Open the cover of the charging port and pay attention to inspection: pay attention to whether there are foreign objects such as water stains or mud sand on the interface, especially in rainy days.

3. Take out the charging gun from the charging pile: press the switch with your thumb and pull out the charging gun, and also check whether there are foreign objects such as water stains or mud sand on the interface.

4. Insert the charging gun into the corresponding charging port and push it to the end: do not press the switch when inserting the gun, and you will hear a "click" lock sound indicating that it has been inserted in place.

5. At this time, the vehicle screen will display "Connected to the charging pile".

6. Scan the QR code on the charging pile with your mobile phone: scan the code with the corresponding APP or applet, or you can directly use the
Scan WeChat/Alipay.

7. Complete the payment on the phone and start charging.
8. View charging data: You can view the voltage, current, charging capacity, battery life and other data on the screen of the mobile phone/car/charging pile.

9. Stop charging: Press the phone to stop charging or automatically stop when fully charged.

10. Pull the gun and close the charging port cover: Press the switch and pull out the charging gun, and at the same time close the charging port cover to avoid forgetting.

11. Put the charging gun back in its original position.
