Infypower ni o ni kan pipe jara ti AC2DC atunse module paapa dara fun EV DC gbigba agbara ibudo, ibora kan jakejado ibiti o ti input ki o si wu foliteji.Ọja ti isiyi portfolio ni wiwa awọn o wu agbara orisirisi lati 4kw, 15kw, 16kw, 20kw ati 30kW.Nini awọn ọdun iyasọtọ ti iwadii ati ikojọpọ iriri to lagbara ni idagbasoke awọn modulu agbara pẹlu iwuwo agbara giga, ariwo kekere ati igbẹkẹle pipe, a ṣii lati ṣe atilẹyin awọn alaye module ti adani fun alabara kọọkan.
Awọn ẹya ara ẹrọ
● Apẹrẹ plug gbona ni kikun
● Inu ga igbohunsafẹfẹ transformer ipinya
● Ṣiṣe giga ti o ga julọ lori ibiti o ti ni kikun, iṣẹ ṣiṣe kikun ti o ga ju 95% Ibakan lọwọlọwọ fun agbara ti o ga julọ ni titẹ agbara kekere.
● Circuit itọsi itọsi ti inu inu yoo yọ idiyele ti o ku silẹ laifọwọyi
● Ipele 3 laisi didoju yọkuro eewu ti awọn ṣiṣan didoju giga
● 3 alakoso ti nṣiṣe lọwọ imọ-ẹrọ atunṣe ifosiwewe agbara, dinku kikọlu ti irẹpọ si akoj
● Apẹrẹ DSP meji, pese iṣakoso oni-nọmba ni kikun, awọn paati kere si tumọ si igbẹkẹle ti o ga julọ Ibiti iwọn otutu ti n ṣiṣẹ: -40 ° C- + 75 ° C
Nikan alakoso AC igbewọle

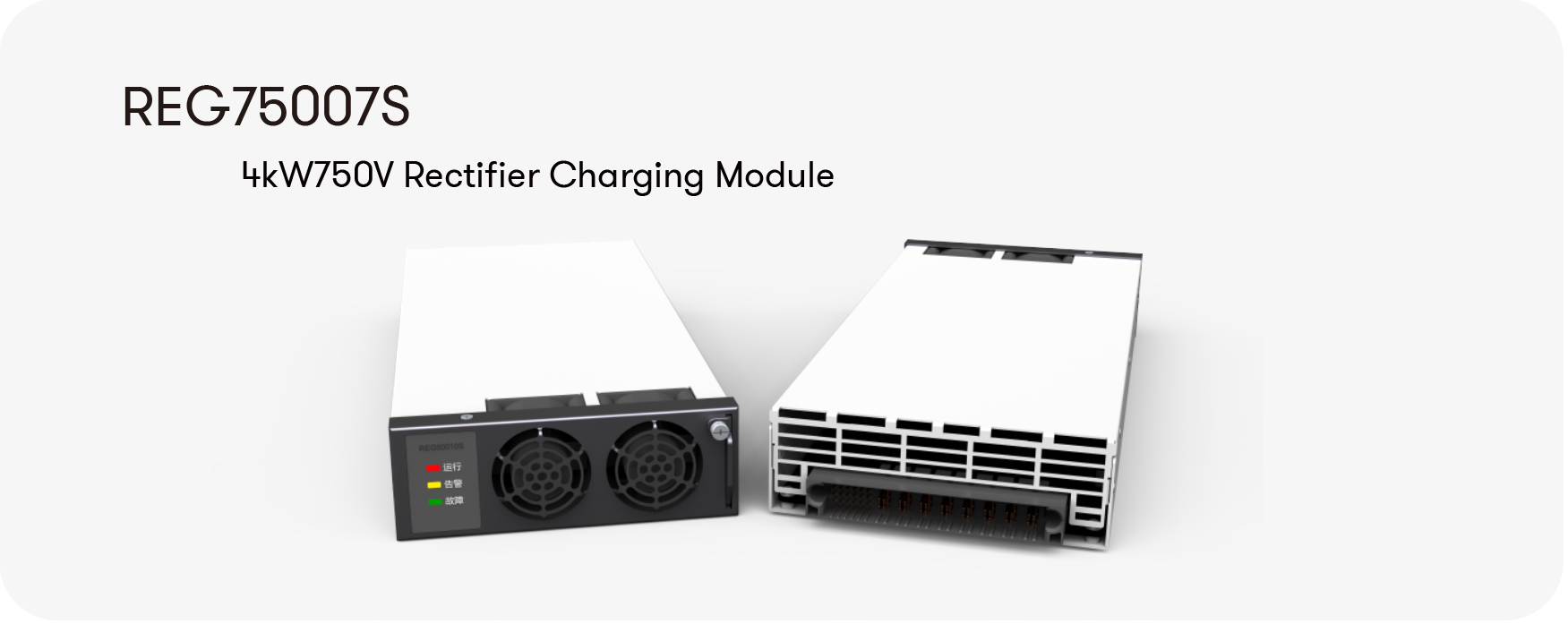

●REG75007S
300vdc-750vdc, 0-6.7A, 4KW

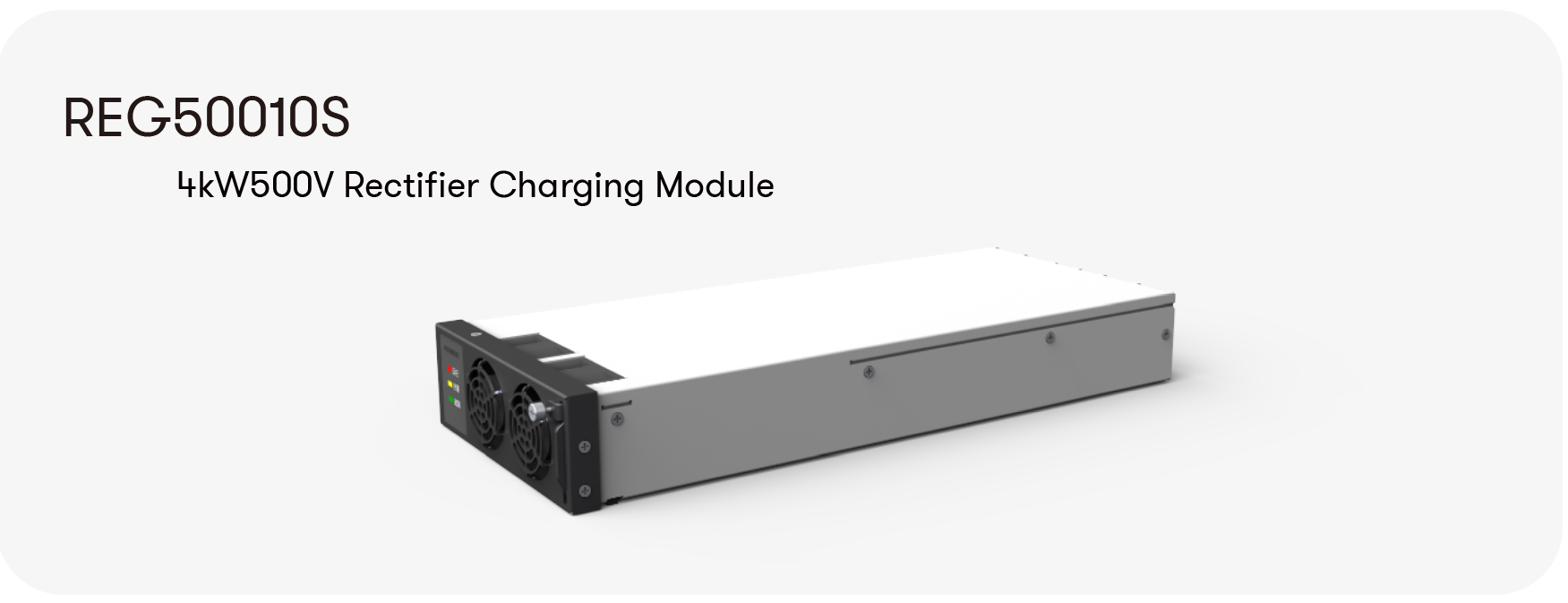

●REG50010s
200vdc-500vdc, 0-10A, 4kW
●REG75020SG
150vdc-750vdc, 0-20A, 7kW
Awọn paramita
| AC Input foliteji ati lọwọlọwọ | 260Vac ~ 530Vac, 38A |
| DC o wu foliteji ati lọwọlọwọ | 150Vdc ~ 1000Vdc, 25A |
| Ti won won agbara | 20kW |
| Awọn iwọn ati iwuwo | 84mm(H)×226mm(W)×395mm(D), ≤11 kg |
Awọn paramita
| AC Input foliteji ati lọwọlọwọ | 260Vac ~ 530Vac, 30A |
| DC o wu foliteji ati lọwọlọwọ | 150Vdc ~ 750Vdc, 25A |
| Ti won won agbara | 15kW |
| Awọn iwọn ati iwuwo | 84mm(H)×226mm(W)×395mm(D), ≤11 kg |
Awọn paramita
| AC Input foliteji ati lọwọlọwọ | 260Vac ~ 530Vac, 30A |
| DC o wu foliteji ati lọwọlọwọ | 150Vdc ~ 550Vdc, 35A |
| Ti won won agbara | 15kW |
| Awọn iwọn ati iwuwo | 84mm(H)×226mm(W)×395mm(D), ≤11 kg |
Awọn paramita
| AC Input foliteji ati lọwọlọwọ | 260Vac ~ 530Vac, 32A |
| DC o wu foliteji ati lọwọlọwọ | 150Vdc ~ 500Vdc, 40A |
| Ti won won agbara | 16kW |
| Awọn iwọn ati iwuwo | 84mm(H)×226mm(W)×395mm(D), ≤11 kg |
Awọn paramita
| AC Input foliteji ati lọwọlọwọ | 260Vac～530Vac, 58A |
| DC o wu foliteji ati lọwọlọwọ | 150Vdc～1000Vdc, 100A |
| Ti won won agbara | 30kW |
| Awọn iwọn ati iwuwo | 110mm(H)×385mm(W)×395mm(D), ≤22.5 kg |
Awọn paramita
| AC Input foliteji ati lọwọlọwọ | 260Vac ～530Vac, 58A |
| DC o wu foliteji ati lọwọlọwọ | 150Vdc～1000Vdc, 100A |
| Ti won won agbara | 30kW |
| Awọn iwọn ati iwuwo | 84mm (H) × 300mm (W) × 395mm (D), ≤17 kg |
TUV CE / UL, Iwe-ẹri KC, ipele B kilasi EMC
Apẹrẹ ipinya duct air fun aabo giga ati igbẹkẹle giga fun agbegbe lile
Agbara imurasilẹ kekere pẹlu 12W.Iṣẹ EPO lati mọ agbara iṣelọpọ lẹsẹkẹsẹ ni pipa
Nikan Alakoso AC input Module Rectifier
Module atunṣe AC2DC ti nwọle ipele kan jẹ o dara fun iṣowo ati ohun elo ile-
tion lai 3-alakoso po.O tun le ni irọrun ṣepọ sinu ṣaja EV DC to ṣee gbe lati pese pẹlu agbara giga
iwuwo ati agbara igbẹkẹle.
Paramita
| AC Input foliteji ati lọwọlọwọ | 85Vac ～300Vac, 30A |
| DC o wu foliteji ati lọwọlọwọ | 300Vdc～750Vdc, 6.7A |
| Ti won won agbara | 4kW |
| Awọn iwọn ati iwuwo | 41.2mm (H) × 125mm (W) × 300mm (D), ≤2.75 kg |
Awọn paramita
| AC Input foliteji ati lọwọlọwọ | 85Vac ～300Vac, 30A |
| DC o wu foliteji ati lọwọlọwọ | 200Vdc～500Vdc, 10A |
| Ti won won agbara | 4kW |
| Awọn iwọn ati iwuwo | 41.2mm (H) × 125mm (W) × 300mm (D), ≤2.75 kg |
Awọn paramita
| AC Input foliteji ati lọwọlọwọ | 90Vac ～280Vac, 20A |
| DC o wu foliteji ati lọwọlọwọ | 150Vdc～750Vdc, 20A |
| Ti won won agbara | 7kW |
| Awọn iwọn ati iwuwo | 87mm (H) × 178mm (W) × 385mm (D), ≤7 kg |
